Huawei 32-channel Subscriber Cable

Huawei

32-channel Subscriber Cable

Huawei MA5616 32-Channel subscriber cable connects a service board to the MDF for transmitting audio, video and data signals.
  • جهت خرید کالا با واحد فروش شرکت به شماره 41335 021 تماس حاصل فرمائید.
  • کلیه تجهیزات Active شامل گارانتی طلایی و یکساله "شبکه تکوین اندیشه برتر" می باشند.
  • ارسال کالا در تهران با پیک و در سایر شهرستان ها با پست انجام می شود.
  • تجهیزات سازگار با این کالا را در قسمت "تجهیزات مرتبط" مشاهده کنید.

 Huawei MA5616 32-Channel subscriber cable connects a service board to the MDF for transmitting audio, video and data signals.

A 32-Channel subscriber cable connects a service board to the MDF for transmitting audio, video and data signals.

Application

One end of a 32-channel subscriber cable is a Champ 64-pin connector connected to a port of a service board, and the other end is bare wires connected to the MDF.

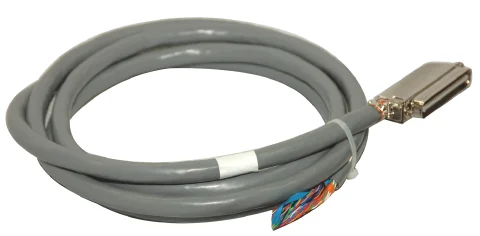

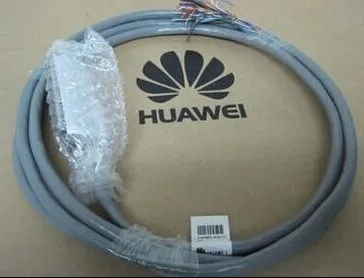

Appearance of a 32-channel subscriber cable

Huawei MA5616 32-channel 3m Subscriber Cable CSAD32031

Huawei MA5616 32-channel 3m Subscriber Cable CSAD32031

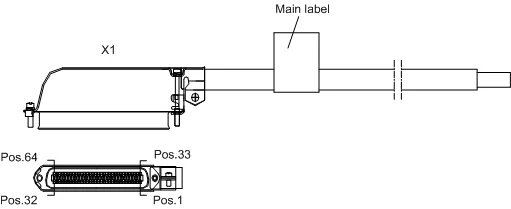

Structure of a 32-channel subscriber cable

Huawei MA5616 32-channel 3m Subscriber Cable CSAD32031

Functions

 Pin Assignments

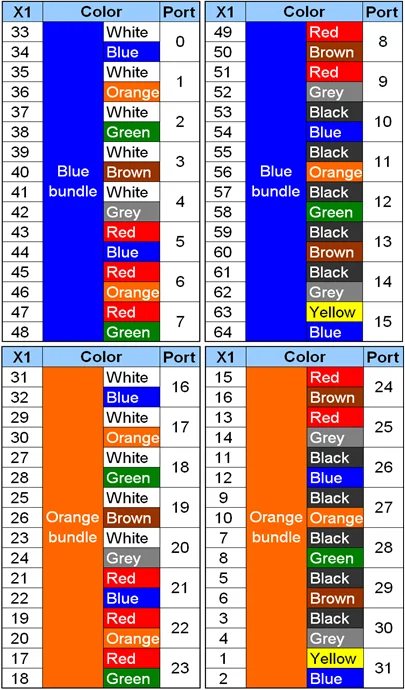

 Pin assignments of a 32-channel subscriber cable

Huawei MA5616 32-channel 3m Subscriber Cable CSAD32031

Technical Specifications

Technical specifications of a 32-channel subscriber cable

Parameter

Description

Connector

Champ 64-pin

Cable type

Symmetrical twisted pair

Color

PANTONE 430U

Characteristic impedance

100.0 ohms

Wire diameter of the inner conductor

0.400 mm

Wire gauge of the inner conductor

26 AWG

Number of wires

64

Breakdown voltage

1000.0 V

DC resistance of the inner conductor

145.0 ohms/km

Frequency range

ADSL: 1 MHz–20 MHz

VDSL: 1 MHz–30 MHz

Frequency attenuation

≤ 2.95 dB/100 m (1 MHz)

Capacitance

≤ 56 nF/km (1 kHz)
